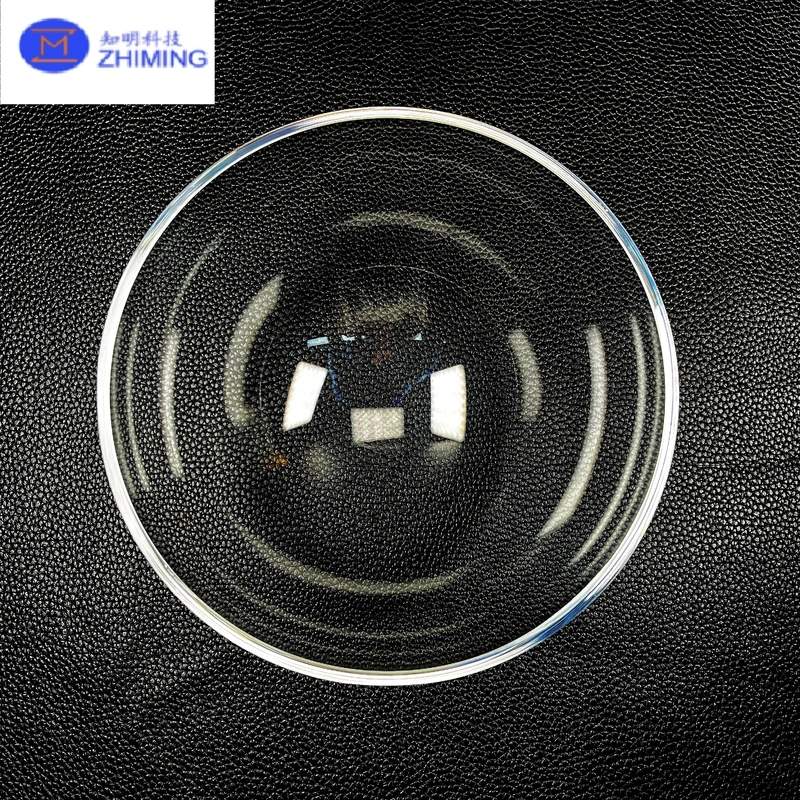

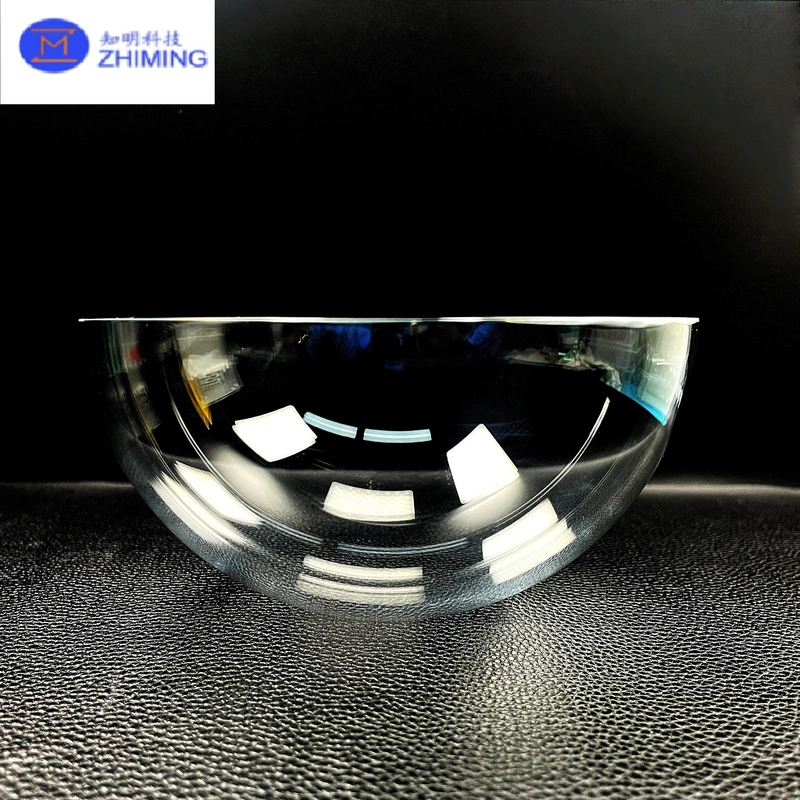

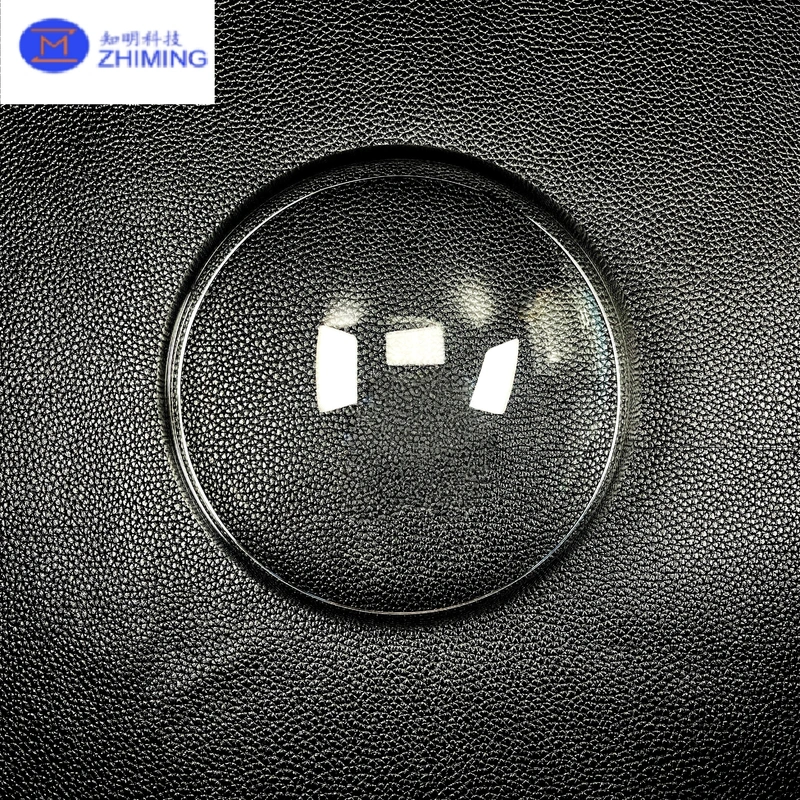

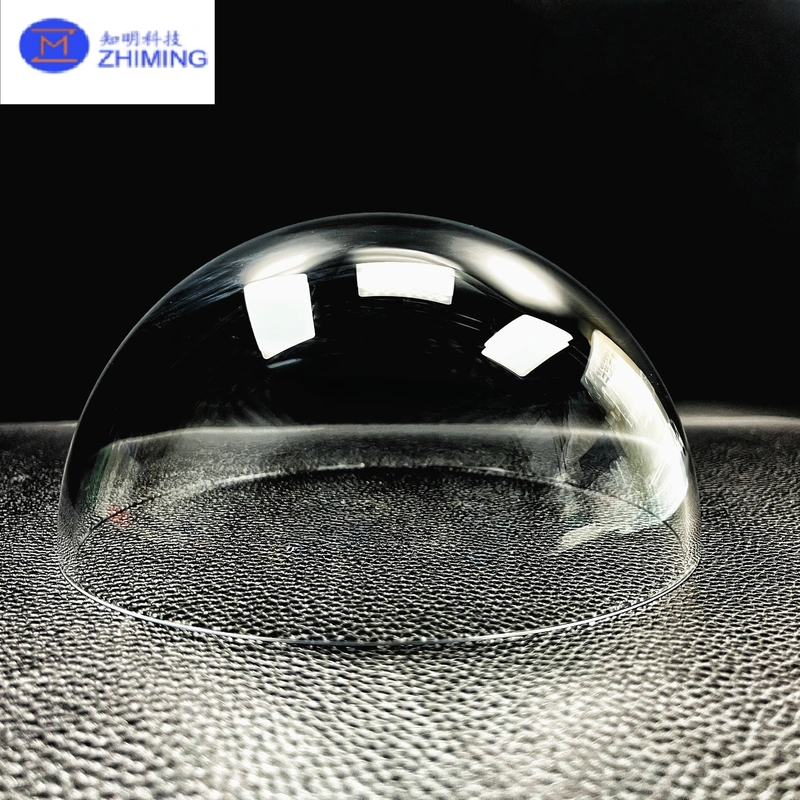

The Sapphire Dome Window is a high-performance optical component engineered from monocrystalline aluminum oxide (Al₂O₃), designed to deliver exceptional performance in extreme and demanding environments. Compared to traditional optical materials such as glass or quartz, sapphire provides a unique combination of mechanical strength, thermal stability, and optical transparency, making it an ideal choice for advanced optical and infrared (IR) systems.
Thanks to its Mohs hardness of 9, sapphire is second only to diamond in hardness, offering outstanding resistance to scratches, abrasion, and high-velocity particle impact. This makes sapphire dome windows particularly suitable for applications where durability and long service life are critical.
The dome geometry further enhances structural strength by distributing stress evenly across the surface, allowing the component to withstand high pressure, aerodynamic forces, and rapid environmental changes. As a result, sapphire domes are widely used as protective windows for sensors and optical systems in aerospace, defense, and industrial applications.
Optical and Physical Advantages
One of the key advantages of sapphire dome windows lies in their broad spectral transmission range, extending from ultraviolet (UV) wavelengths around 170 nm to mid-infrared (IR) wavelengths up to 5 µm. This wide transmission capability makes them highly versatile for multi-spectral optical systems, including infrared imaging, laser systems, and precision sensors.
In addition, sapphire maintains excellent optical clarity with minimal scattering when polished to optical-grade surface finishes (<10 Å RMS). This ensures high signal integrity and accurate data acquisition in sensitive optical applications.
From a thermal perspective, sapphire exhibits exceptional stability, capable of operating at temperatures up to 1900°C in vacuum or inert gas environments. Even in air, it maintains reliable performance at temperatures exceeding 1600°C, far surpassing most conventional optical materials.
Moreover, sapphire is chemically inert, resisting corrosion from acids, alkalis, and other aggressive substances. This property makes it particularly suitable for marine, chemical, and high-humidity environments.
Key Features
- Extreme Hardness and Wear Resistance – Ensures long-term durability in abrasive and high-impact environments
- Wide Optical Transmission (UV to IR) – Suitable for multi-spectrum optical systems
- High Thermal Stability – Maintains performance under extreme temperatures
- Superior Mechanical Strength – Dome structure enhances pressure and impact resistance
- Excellent Chemical Resistance – Ideal for corrosive and harsh environments
- Precision Optical Surface Quality – <10 Å RMS for minimal distortion
Applications
Sapphire dome windows are widely used in industries requiring reliable optical performance under extreme conditions:
- Infrared (IR) Sensor Systems – missile guidance, thermal imaging, UAV sensors
- Aerospace and Defense – high-speed flight and harsh environmental protection
- Underwater Optical Systems – deep-sea cameras, sonar and lidar housings
- Laser and Photonics Equipment – protection of sensitive optical components
- Industrial Monitoring Systems – high-temperature and high-pressure optical access
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Monocrystalline Sapphire (Al₂O₃) |
| Diameter | 5 mm – 200 mm (Customizable) |
| Wall Thickness | 0.5 mm – 10 mm |
| Transmission Range | 170 nm – 5 µm |
| Surface Finish | <10 Å RMS |
| Operating Temperature | Up to 1900°C (Vacuum/Inert Gas) |
| Refractive Index | 1.76 @ 0.55 µm |
Customization Options
We provide flexible customization services to meet specific application requirements:
- Custom dome diameters and thicknesses
- Inner and outer curvature radius design
- Optical coatings (AR, IR, broadband coatings)
- Edge shaping and mounting structures
- High-precision tolerance control
FAQ
Q1: What makes sapphire dome windows better than glass alternatives?
A: Sapphire offers significantly higher hardness, better thermal resistance, and a wider optical transmission range, making it ideal for demanding environments where glass would fail.
Q2: Can sapphire domes be coated for enhanced performance?
A: Yes, anti-reflective (AR), infrared (IR), and custom coatings can be applied to optimize optical efficiency.
Q3: Are these domes suitable for extreme environments?
A: Absolutely. Sapphire domes perform reliably under high temperature, pressure, and corrosive conditions.
Q4: Do you support custom designs?
A: Yes, all critical parameters can be customized according to your technical drawings or requirements.
