Tổng quan về sản phẩm

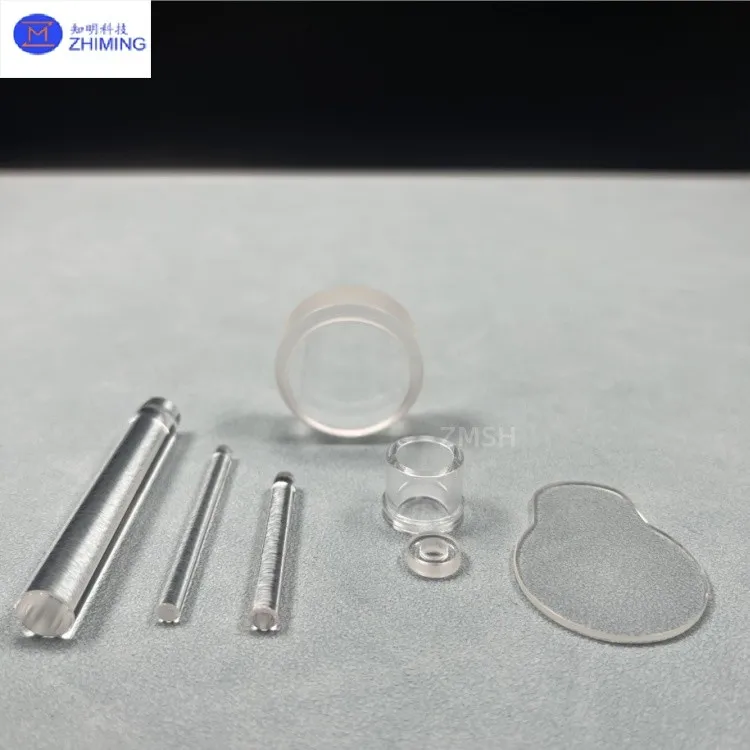

Custom-shaped Sapphire Optical Windows are precision-engineered optical components fabricated from ≥99.99% single-crystal aluminum oxide (α-Al₂O₃). Unlike standard circular or square windows, these sapphire windows can be customized into complex geometries—polygonal, annular, D-shaped, sector-shaped, and more—while retaining sapphire’s exceptional properties: Mohs hardness 9, ultra-high scratch resistance, thermal and chemical stability, and broad-spectrum optical transmission (250–5500 nm).
Ideal for high-end laser systems, military electro-optics, aerospace observation windows, precision instrumentation, semiconductor equipment, and scientific devices, these windows meet the most stringent requirements for performance in extreme environments.
Thông số kỹ thuật
| Tham số | Thông số kỹ thuật |
|---|---|
| Material Purity | ≥99.99% α-Al₂O₃ single crystal |
| Density | 3.98 g/cm³ |
| Độ cứng | Mohs 9 / Knoop 2200 kgf/mm² |
| Wavelength Range | 250–5500 nm (UV to mid-IR) |
| Transmittance | >85% (Visible-NIR), >80% (UV-MIR) |
| Temperature Range | Continuous: 800°C, Short-term: 1800°C |
| Available Shapes | Polygonal, Annular, D-shaped, Sector, Irregular |
| Thickness Range | 0.2–20 mm (±0.01 mm tolerance) |
| Surface Roughness | Ra ≤5 nm (polished) |
| Reflectivity | <0.5% with optional AR coatings (e.g., 1064nm, 10.6μm) |
| Đóng gói | Class 100 cleanroom |
| Chứng nhận | RoHS |
Tính năng chính
-
Complex Geometry Adaptability: CNC-machined irregular contours with ±0.02 mm edge tolerance.
-
Ultra-High Hardness & Scratch Resistance: Mohs 9, 10× more scratch-resistant than standard optical glass.
-
Broad-Spectrum Optical Transmission: 250–5500 nm; optional AR coatings for laser systems.
-
Extreme Thermal & Chemical Stability: Continuous 800°C, short-term 1800°C; resistant to acids, alkalis, and plasma corrosion.
-
Mechanical Robustness: Flexural strength >600 MPa, suitable for ultra-thin structures down to 0.2 mm.
-
Precision Surface Finish: Polished, Ra ≤5 nm, minimizing scattering and ensuring optical clarity.
Ứng dụng
-
Special Laser Optical Systems
-
Side-pump windows for fiber lasers
-
Protective windows for ultrafast laser deflectors
-
-
Defense & Aerospace
-
Missile seeker radomes
-
Irregular observation windows for airborne EO pods
-
-
Thiết bị bán dẫn
-
Shaped viewports for etching and thin-film deposition systems
-
-
Các thiết bị y tế và khoa học
-
Articulating endoscope lenses
-
Synchrotron radiation beamline deflectors
-
Câu hỏi thường gặp
Q1: Why choose sapphire over standard optical glass?
A: Sapphire offers 10× higher scratch resistance (Mohs 9), broader UV-IR transmission (250–5500 nm), and superior thermal and chemical durability, outperforming glass in harsh environments.
Q2: Can sapphire windows be customized for specific laser wavelengths?
A: Yes, we provide wavelength-specific AR coatings (e.g., 1064 nm / 10.6 μm) with <0.5% reflectivity and λ/10 surface accuracy for laser applications.
Q3: What industries commonly use custom-shaped sapphire windows?
A: High-end laser systems, military electro-optics, aerospace observation windows, semiconductor equipment, and precision instrumentation.
