When engineers design optical systems, the window material is not just a transparent cover. It affects transmission, imaging quality, thermal stability, mechanical durability, sealing reliability, cost, and long-term performance. Sapphire, BK7, and K9 glass are all common optical materials, but they are suitable for different working conditions.
BK7 and K9 are widely used in lenses, prisms, mirrors, protective windows, camera optics, instruments, and general visible-light optical systems. Sapphire is usually selected when the optical component must also survive harsh environments such as high temperature, pressure, abrasion, chemicals, vacuum, plasma, outdoor exposure, or repeated cleaning.
This article compares sapphire, BK7, and K9 glass from the perspective of optical system design, helping buyers and engineers choose the right material for different applications.
1. What Is Sapphire?
Sapphire used in optical windows is synthetic single-crystal aluminum oxide, Al₂O₃. It is not the same as ordinary glass. Sapphire is a crystalline material with excellent hardness, wear resistance, chemical resistance, high-temperature stability, and broad optical transmission from ultraviolet to infrared wavelengths. Kyocera describes sapphire optical components as having high transmittance across a wide wavelength range from ultraviolet to infrared, while also resisting corrosion and wear.
Because of these properties, sapphire is often used for:
- Protective optical windows
- Vysokotlaké průzory
- Vacuum chamber windows
- Sensor covers
- Laser windows
- Harsh-environment camera windows
- Semiconductor equipment windows
- Chemical and plasma observation windows
- Aerospace and defense optical covers
- Wear-resistant scanner or inspection windows
The main advantage of sapphire is not only transparency. Its value comes from combining optical performance with mechanical and environmental durability.
2. What Is BK7 Glass?
BK7 is a borosilicate crown optical glass. SCHOTT’s N-BK7 is one of the most widely used standard optical glasses because it offers stable optical properties, good internal transmission in the visible and near-infrared region, and reliable availability for precision optics. SCHOTT’s N-BK7 datasheet lists the material with refractive index data and internal transmittance values across multiple wavelengths, which makes it useful for optical design calculations.
BK7 is commonly used for:
- Objektivy
- Prisms
- Optická okna
- Mirrors
- Beam splitters
- Zobrazovací systémy
- Laboratorní přístroje
- Camera and telescope components
- General visible-light optical systems
Compared with sapphire, BK7 is easier to process, easier to polish, more cost-effective, and widely available in many sizes. However, it does not provide the same hardness, thermal resistance, or harsh-environment durability as sapphire.
3. What Is K9 Glass?
K9 glass is commonly used in China as an optical crown glass similar to BK7. In many sourcing discussions, K9 or H-K9L is treated as a BK7-equivalent material, especially for lenses, prisms, windows, and general optical components. CDGM’s H-K9L datasheet lists nd = 1.516800 a νd = 64.20, which are very close to typical N-BK7 optical values.
However, buyers should be careful with the term “K9.” In international optical procurement, it is better to confirm the exact glass grade, such as H-K9L, N-BK7, or another equivalent grade, instead of only writing “K9 glass.” CDGM’s optical glass data explains that the H-K9L code 517642 corresponds to refractive index and Abbe number values, which helps optical designers identify the material more precisely.
Jednoduše řečeno:
- BK7 usually refers to the well-known borosilicate crown glass family.
- N-BK7 often refers specifically to SCHOTT’s lead- and arsenic-free version.
- K9 / H-K9L usually refers to a Chinese optical crown glass grade similar to BK7.
- For precision systems, buyers should confirm the exact datasheet, not only the common name.

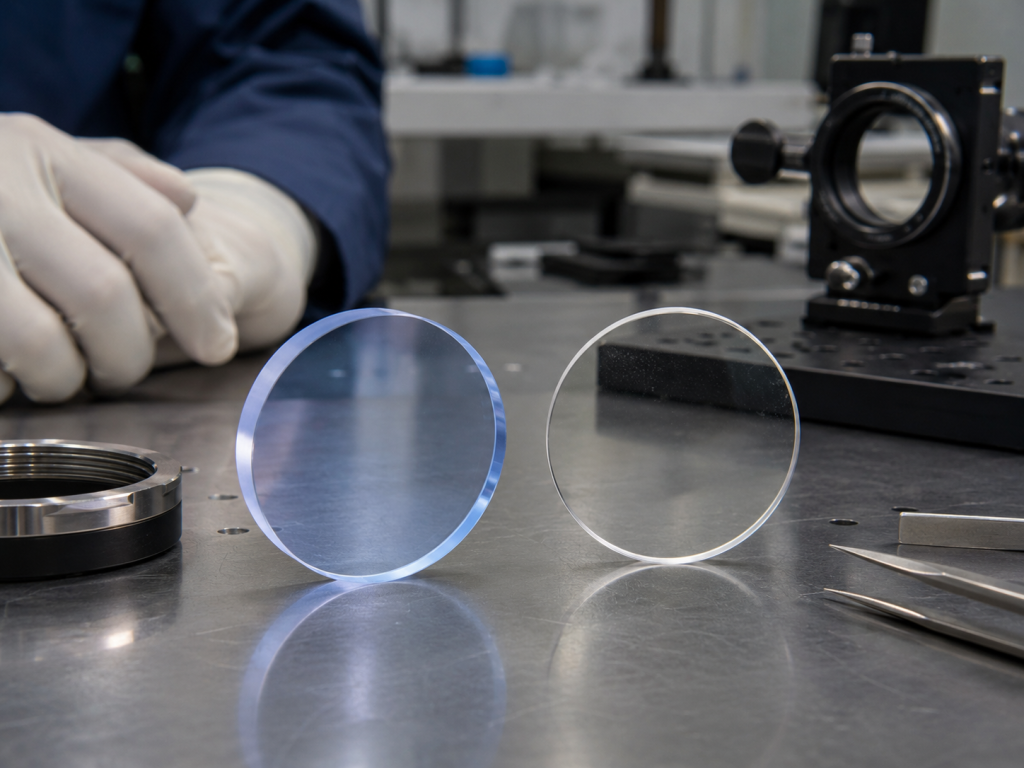

4. Quick Comparison: Sapphire vs BK7/K9 Glass
| Majetek | Sapphire | BK7 / K9 Glass |
|---|---|---|
| Material type | Single-crystal Al₂O₃ | Optical crown glass |
| Main advantage | Hardness, durability, thermal stability | Optical quality, lower cost, easy processing |
| Optical range | UV to IR, depending on grade and thickness | Mainly visible to near-IR |
| Tvrdost | Velmi vysoká | Mírná |
| Odolnost proti poškrábání | Vynikající | Lower than sapphire |
| Thermal resistance | Vynikající | Limited compared with sapphire |
| Chemická odolnost | Vynikající | Good for normal optical environments |
| Processing difficulty | Vysoká | Dolní |
| Náklady | Vyšší | Dolní |
| Best for | Harsh environments, pressure, wear, high temperature | General optical systems, lenses, prisms, lab optics |
| Design concern | Birefringence, cost, machining difficulty | Lower durability, lower thermal performance |
5. Optical Transmission Differences
For many visible-light optical systems, BK7 or K9 glass is often enough. Edmund Optics notes that standard optical glasses provide high transmission through the visible spectrum and beyond into near-ultraviolet and near-infrared ranges. This is why BK7/K9 is widely used in cameras, telescopes, microscopes, laboratory optics, and general protective windows.
Sapphire is more suitable when the optical window must cover a wider wavelength range or operate in a harsher environment. Sapphire optical windows are commonly used from ultraviolet to infrared applications, especially when the window must also resist wear, corrosion, pressure, or high temperature.
For simple visible imaging, BK7/K9 is usually more economical. For UV, IR, high-power, high-temperature, or harsh-environment systems, sapphire may be the better long-term choice.
6. Refractive Index and Optical Design
Refractive index affects how light bends when it enters and exits a material. Edmund Optics explains that refractive index is a key optical glass parameter and is commonly specified at 587.6 nm for optical glass design.
BK7 and H-K9L have very similar refractive index values around 1.5168 at the d-line, making them familiar materials for optical designers. SCHOTT’s N-BK7 and CDGM’s H-K9L datasheets both list refractive index and dispersion data for optical calculation.
Sapphire has a higher refractive index than BK7/K9, so Fresnel reflection at each surface is higher if the window is uncoated. In systems where transmission is important, sapphire windows often benefit from anti-reflective coating designed for a specific wavelength range.
For buyers, the practical point is simple: changing from BK7/K9 to sapphire may require optical redesign, especially if the window is part of an imaging path, laser path, or precision sensor system.
7. Birefringence: A Key Difference
BK7 and K9 are isotropic optical glasses, which means they generally do not have crystal-direction-related birefringence. Sapphire is different. It is a single-crystal material, and its optical behavior can depend on crystal orientation.
For general protective windows, this may not be a major issue. But for laser systems, polarization-sensitive optics, precision imaging, or interferometry, sapphire orientation should be considered. Thorlabs states that its sapphire windows are Z-cut so that the c-axis is parallel with the optical axis, helping remove birefringence effects on transmitted light.
This is why buyers should not only ask for “sapphire window.” They may also need to specify:
- Random orientation
- C-cut / Z-cut sapphire
- Optical axis direction
- Birefringence requirement
- Laser wavelength
- Polarization sensitivity
- Transmitted wavefront requirement
For ordinary protection, BK7/K9 may be simpler. For harsh environments, sapphire is stronger, but orientation control may be required for high-precision optical systems.
8. Hardness and Scratch Resistance
The biggest mechanical difference between sapphire and BK7/K9 is hardness. Sapphire is much harder and more scratch-resistant than ordinary optical glass. This makes it suitable for exposed windows that may contact dust, particles, metal tools, cleaning cloths, sand, plasma residues, or harsh outdoor environments.
BK7/K9 can provide excellent optical performance, but it is easier to scratch. In a clean optical instrument, this may not be a problem. In a factory, scanner, sensor, high-pressure chamber, chemical reactor, or outdoor system, surface damage may reduce transmission and increase scattering over time.
Choose sapphire when the window may face:
- Frequent wiping or cleaning
- Abrasive particles
- Mechanical contact
- Drsné průmyslové prostředí
- Outdoor exposure
- High-speed particles or splashes
- Long-term wear requirements
Choose BK7/K9 when the window is protected inside an optical instrument and cost or optical availability is more important than abrasion resistance.
9. Thermal Stability and High-Temperature Use
Sapphire is much better suited for high-temperature optical windows than BK7/K9 glass. Sapphire is used in demanding environments because it combines optical transmission with strong thermal, mechanical, and chemical properties.
BK7 and K9 are better for normal temperature optical systems. They are not the first choice for high-temperature furnaces, combustion monitoring, plasma equipment, or thermal cycling applications. If the system involves rapid heating and cooling, buyers should also consider thermal expansion, mounting stress, and sealing design.
For thermal environments, material choice should not be based only on transparency. The complete window assembly must be evaluated, including:
- Window thickness
- Clear aperture
- Mounting method
- Seal material
- Thermal expansion mismatch
- Surface quality
- Edge chamfer
- Temperature cycling rate
Sapphire is stronger under harsh thermal conditions, but poor mounting design can still cause stress and cracking.
10. Chemical and Environmental Resistance
In chemical, vacuum, plasma, marine, medical, semiconductor, or outdoor applications, environmental resistance can become more important than basic optical transmission.
Sapphire has strong corrosion and wear resistance, which is why it is often used for sensing and observation windows in demanding industrial environments. BK7/K9 glass performs well in ordinary optical systems, but it is less suitable for severe chemical exposure, particle erosion, plasma attack, or repeated aggressive cleaning.
Sapphire should be considered for:
- Chemical reactor viewports
- Vacuum chamber windows
- Plasma process observation
- High-pressure gas systems
- Outdoor optical sensors
- Medical or sterilization environments
- Polovodičová zařízení
- Harsh cleaning processes
BK7/K9 is more suitable for:
- Laboratory optical benches
- Camera optics
- General lenses and prisms
- Protected optical windows
- Low-cost visible-light systems
- Educational and inspection equipment
11. Processing Difficulty and Cost
BK7/K9 glass is easier to cut, grind, polish, coat, and process into lenses or prisms. This makes it suitable for cost-sensitive optical systems and complex optical shapes.
Sapphire is much harder and more difficult to machine. Cutting, grinding, lapping, polishing, drilling, chamfering, and coating sapphire usually require more time, more advanced equipment, and stricter process control. This is why sapphire windows are typically more expensive than BK7/K9 glass windows.
Cost should be evaluated based on total system performance, not only unit price. If BK7/K9 needs frequent replacement because of scratches, thermal damage, or chemical attack, sapphire may reduce long-term maintenance cost. But if the application is a clean indoor optical instrument, BK7/K9 may be the more reasonable choice.
12. Which Material Should You Choose?
Choose Sapphire When:
- The window is exposed to abrasion or frequent cleaning.
- The system involves high temperature or thermal cycling.
- The window is used in pressure, vacuum, gas, or chemical environments.
- The application requires UV-to-IR optical access.
- The window must resist scratches for long-term use.
- The optical component is part of a harsh-environment sensor.
- The window is used in semiconductor, aerospace, defense, laser, or industrial equipment.
- Replacement is difficult or downtime is expensive.
Choose BK7/K9 Glass When:
- The system works mainly in the visible range.
- The optical component is protected inside an instrument.
- Cost control is important.
- The part is a lens, prism, mirror substrate, or general window.
- The environment is clean and stable.
- High hardness and high-temperature resistance are not required.
- Fast prototyping and easy manufacturing are important.
13. Typical Application Examples
| Application | Better Material Choice | Reason |
| Camera lens element | BK7/K9 | Good optical performance and cost control |
| Laboratory optical window | BK7/K9 | Easy to source and process |
| Laser protection window in harsh environment | Sapphire | Better hardness and durability |
| Furnace observation window | Sapphire | Better high-temperature resistance |
| Vacuum chamber viewport | Sapphire | Stronger mechanical and chemical performance |
| Outdoor sensor cover | Sapphire | Better scratch and weather resistance |
| Low-cost visible inspection window | BK7/K9 | Economical and sufficient |
| Semiconductor process window | Sapphire | Better resistance to plasma, heat, and cleaning |
| General prism | BK7/K9 | Easier processing and stable optical design |
| High-pressure gas optical window | Sapphire | Better mechanical strength and safety margin |
14. Buyer Checklist Before Ordering
Before choosing sapphire, BK7, or K9 glass, buyers should confirm:
| Requirement | Why It Matters |
| Wavelength range | Determines optical transmission and coating design |
| Working temperature | Determines thermal stability requirement |
| Chemical exposure | Determines corrosion resistance requirement |
| Pressure or vacuum | Determines thickness and sealing design |
| Abrasion risk | Determines hardness requirement |
| Optical accuracy | Determines flatness, parallelism, and wavefront requirement |
| Polarization sensitivity | Important for sapphire orientation |
| Surface quality | Affects scattering, imaging, and laser safety |
| Coating | Improves transmission at target wavelength |
| Quantity and budget | Affects material and processing choice |
| Replacement difficulty | Helps compare initial cost vs lifetime cost |
Závěr
Sapphire, BK7, and K9 glass are all useful optical materials, but they are not interchangeable in every optical system.
BK7 and K9 glass are excellent choices for general optical systems, especially when cost, availability, visible-light transmission, and easy processing are important. They are widely used for lenses, prisms, windows, and laboratory optical components.
Sapphire is the better choice when the optical window must survive harsh operating conditions. Its high hardness, scratch resistance, chemical stability, thermal resistance, and broad optical transmission make it suitable for pressure systems, vacuum viewports, industrial sensors, semiconductor equipment, laser windows, and outdoor protective optics.
For buyers, the best decision depends on the real application. If the window only needs to transmit visible light in a clean and protected environment, BK7/K9 is often enough. If the window must protect the system from heat, pressure, abrasion, chemicals, plasma, or repeated cleaning, sapphire is usually the safer long-term material.
ČASTO KLADENÉ DOTAZY
1. Is K9 glass the same as BK7?
K9 or H-K9L is often used as a BK7-equivalent optical crown glass, especially in Chinese optical manufacturing. However, buyers should confirm the exact grade and datasheet because “K9” can be used broadly in sourcing discussions.
2. Is sapphire better than BK7 glass?
Sapphire is better for hardness, scratch resistance, high-temperature use, chemical resistance, and harsh environments. BK7 is better for cost-sensitive general optical systems, lenses, prisms, and protected visible-light applications.
3. Does sapphire have better optical transmission than BK7?
It depends on the wavelength and application. BK7 performs very well in many visible-light systems. Sapphire is more suitable when a wider UV-to-IR range or harsh-environment durability is required.
4. Why is sapphire more expensive than BK7/K9 glass?
Sapphire is much harder and more difficult to cut, grind, polish, drill, and coat. Its material cost and processing cost are both higher than ordinary optical crown glass.
5. Can BK7/K9 replace sapphire windows?
BK7/K9 can replace sapphire only when the application does not require high hardness, high temperature resistance, chemical resistance, pressure resistance, or harsh-environment durability. For demanding industrial systems, sapphire is usually safer.
